Eddy Current Flexible Bullet Probes
Product Description
TEG – Attached
The eddy current flexible probes offer solid stainless steel construction for durability and titanium protective cover for the coils. They are designed to inspect tight U-bend (as low as 50 mm curvature radius).
RecommendationsTEG probes are designed to inspect tight U-bends with radius of curvatures as low as 51 mm (2 in.). These probes are designed to inspect one half of the U-bend (90°) from each side of the tube. Features
Standard/Custom Probes (Made to Order)Use the nomenclature and the chart below to configure your part number. |

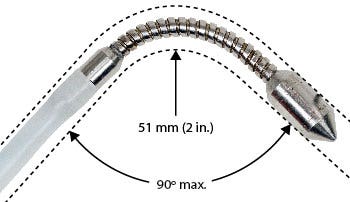

Tube curvature and radius
TEG inspects tubes with a maximum of 90º bend one side a time. Minimum radius is 51 mm. |
| Probe Type | Probe Diameter (use mm in part ID) |
Center Frequency | Cable Length** | |
| mm | in. | |||
| TEG: Flexible bullet | Standard 11 mm to 25.4 mm by 0.2 mm |
Standard 0.433 in. to 1.000 in. by 0.008 in. |
015 (Low) 050 (Mid) 250 (High) 600 (Very High) |
25 m (80 ft) N = Nylon H = More flexible |
| **Information on cables for TEG probes with superior flexibility is available in the Tube Inspection Probe Catalog. | ||||
