GLIDER Scanner
Available on order
Manual X-Y Scanner The GLIDER X-Y Scanner is a 2-axis encoding scanner for the manual inspection of slightly curved or flat composite surfaces. The scanner is well suited for raster scanning with…
Our team confirms specifications, price, lead time and delivery terms in your quotation.
Product information

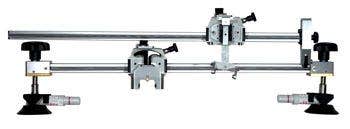

Manual X-Y Scanner
The GLIDER X-Y Scanner is a 2-axis encoding scanner for the manual inspection of slightly curved or flat composite surfaces. The scanner is well suited for raster scanning with the following technologies:
- Conventional ultrasonics (UT)
- Phased array ultrasonics (PAUT)
- Eddy current (EC)
- Eddy current array (ECA)
Commonly inspected materials include composites and aluminum, using suction-cup pods; and carbon steel, using optional magnetic pods.

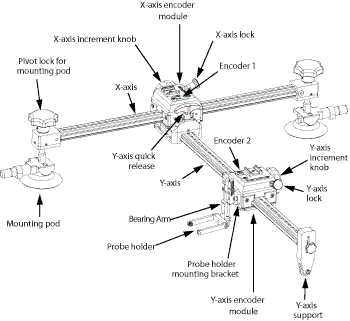

Design Characteristics
The X-axis is attached to two mounting pods. Depending on the material to inspect, one of the following models can be used:
- Suction-cup mounting pod (included)
- Magnetic mounting pod (optional)
There are two encoder modules (one on each axis) to measure the probe position. The displacement of these modules can be in 3.27 mm steps, free running, or locked.
The scanner comes in three formats (18 in., 24 in., and 36 in.), depending on the scan coverage needed:
- GLIDER 18 x 18
- GLIDER 24 x 24
- GLIDER 36 x 36
Options

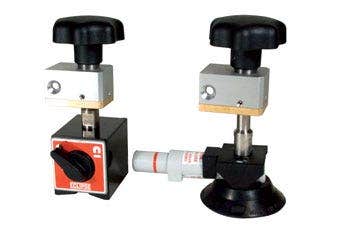

Magnetic Mounting Pods
Magnetic mounting pods enable use on ferromagnetic surfaces (part number GLIDER-A-01)
Tracks
18 in., 24 in., or 36 in. tracks are available as options.
Manual Water Pump Kit
Water pump is compatible with scanner umbilical cables. It can also be used with provided tubing. Includes tank, tubing, and Y-splitters (part number OPIX105).
Electric Water Pump Kits
The CFU-03 and CFU-05 are portable electric pump units used to supply couplant to wedges during ultrasonic inspections.
