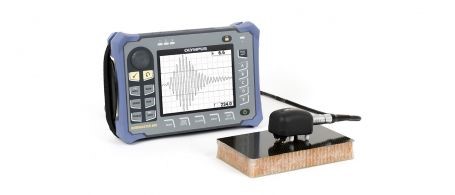

Resonance method is ideal to detect delamination in composite laminates or inspect metal-to-metal bonding. Resonance probes come in various frequencies to accommodate the wide range of composite thicknesses and ply structure found in the industry.
 |
Features
|
S-PR-1Order number: 9317809 (U8010016) Specifications Operation mode: Resonance Frequency range: 35 kHz (+/- 5 kHz) Tips: 15.9 mm (0.63 in.) diameter case Detection capability: Determine in which layer defects are located for multilayer skin applications; for metal or composite applications. |
S-PR-2Order number: 9317810 (U8010017) Specifications Operation mode: Resonance Frequency range: 65 kHz (+/- 10 kHz) Tips: 15.9 mm (0.63 in.) diameter case Detection capability: Determine in which layer defects are located for multilayer skin applications; for metal or composite applications. |
S-PR-3Order number: 9317793 (U8010008) Specifications Operation mode: Resonance Frequency range: 110 kHz (+/- 10 kHz) Tips: 15.9 mm (0.63 in.) diameter case Detection capability: Determine in which layer defects are located for multilayer skin applicaitons; for metal or composite applications. Detect defects sized 12.7 mm (0.5 in.) or larger in fiberglass bonded to a foam core. Maximum skin thickness is 6.35 mm (0.25 in.). |
S-PR-4Order number: 9317794 (U8010009) Specifications Operation mode: Resonance Frequency range: 165 kHz (+/- 10 kHz) Tips: 12.7 mm (0.5 in.) diameter case Detection capability: Determine in which layer defects are located for multilayer skin applications; for metal or composite applications. Detect defect sized 12.7 mm (0.5 in.) or larger in fiberglass bonded to a foam core. Maximum skin thickness is 6.35 mm (0.25 in.). |
Order number: 9317795 (U8010010)
Specifications
Operation mode: Resonance
Frequency range: 250 kHz (+/- 10 kHz)
Tips: 9.5 mm (0.37 in.) diameter case
Detection capability: Determine in which layer defects are located for multilayer skin applications; metal or composite applications. Detect defects sized 12.7 mm (0.5 in.) or larger on metal to metal. Detects from 2 mm (0.08 in.) up to 25.4 mm (1 in.) thickness in the bondline. |
S-PR-6Order number: 9317811 (U8010018) Specifications Operation mode: Resonance Frequency range: 330 kHz (+/- 15 kHz) Tips: 9.52 mm (0.375 in.) diameter case Detection capability: Determine in which layer defects are located for multilayer skin applications. Detect defects size 12.7 mm (0.5 in.) or larger graphite-composite defects: skin thickness, 2-ply through 18-ply. |
S-PR-5
