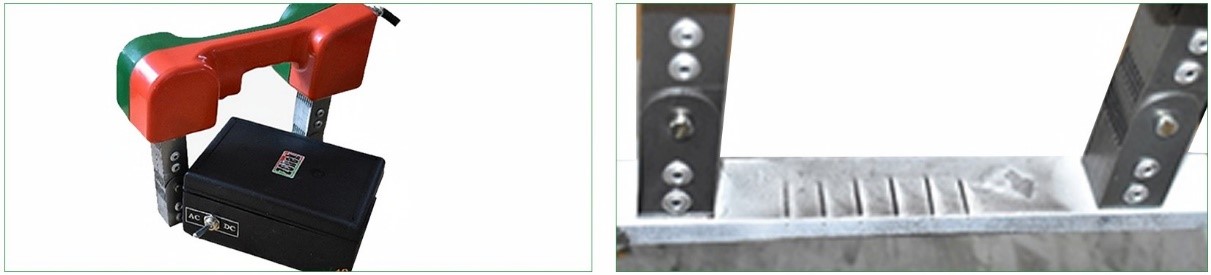

AC electromagnetic yoke, is ergonomically designed to improve productivity and reduce operator arm and wrist fatigue. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.
Lightweight with an ergonomic grip and trigger, the ZC-9 is designed for the rugged demands of field inspection. Featuring a rugged cord and an isolated trigger switch; the ZC-9 is easily serviceable.
Benefits
Increase inspector productivity and reduce physical fatigue
⦁ Less arm strain, wrist fatigue and physical stress help operators get more done due to the lightweight and ergonomic design.
⦁ Easily position the yoke in any direction with lightweight, heavy-duty and powerful electronics components.
Keep tools in service with a design that's built to last

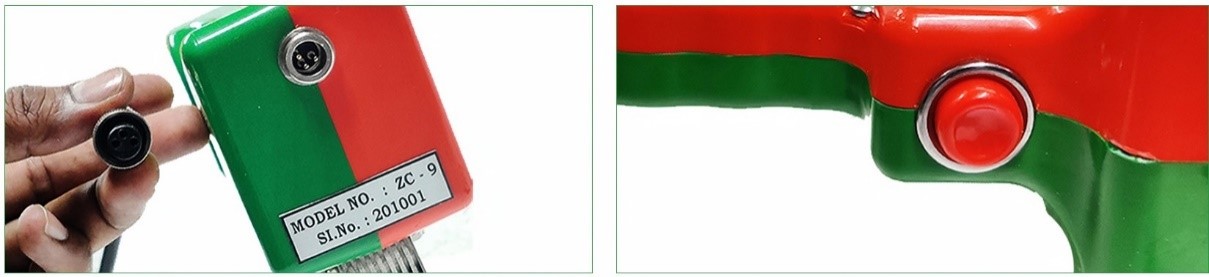

Cords and triggers can be easily replaced, so work doesn’t stop and tools aren’t scrapped due to accidental damage.
Features
⦁ Ergonomic, light-weight design – Steel Shields for Leg Protection

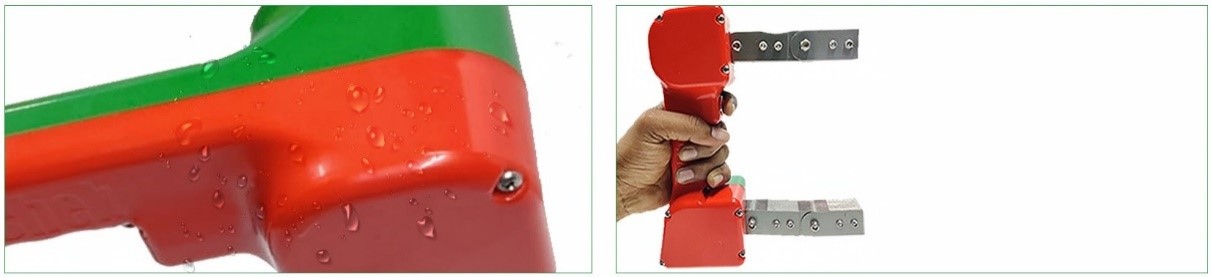

⦁ Resists dust and water – Exceeds ASTM Lifting Specifications
⦁ Field-swappable power Cord-Convenient Carrying Case Supplied with all yoke Shipments
| Product Properties | ⦁ NDT Type: Fluorescent Magnetic Particle Testing |
|---|---|
| Application | Ideal Application: Infrequently used systems, Inspections where corrosion protection is vital, On high strength alloys, When maintaining particle concentration is critical, When water might pose an electrical hazard |
| Aprovals/Confirms | ⦁ ASTM E-I444 |
⦁ Input supply – 220V, 50Hz, 1 Ph
⦁ Distance across poles – 0 to 300 mm
⦁ Lifting power Approx. 4.5Kg. at 100mm spacing
⦁ Yoke Weight 2.5 Kgs approx.
⦁ Controls On/Off Switch.
