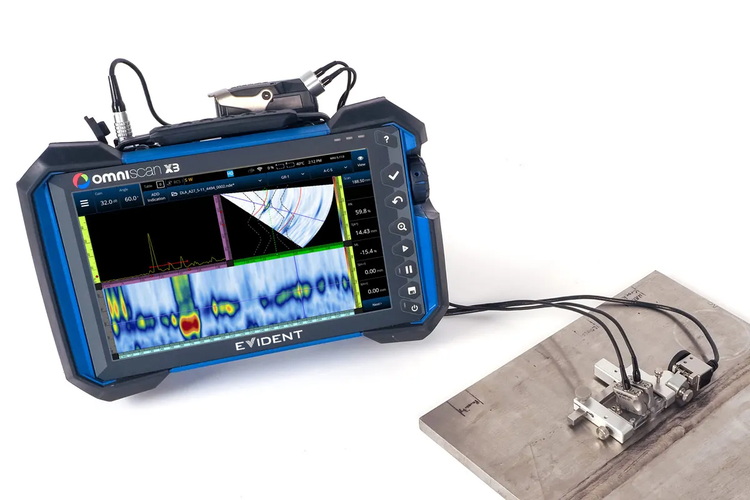

Mini-Wheel Encoder

Features

• Waterproof (IP68)
• Small dimensions
• 12 steps/mm resolution
• Rubber wheel offers increased traction on surface temperatures up to 150°C
• Sealed bearing for long lasting smooth wheel rotation
• Strain relief for increased cable reliability
• Spring-loaded system for constant contact with the surface
• Two M3 threaded holes on top of the casing for rigid attachment to custom assemblies

Options

Magnetic Wheel (standard with universal holder package)

Maximum adherence on ferromagnetic surfaces.
P/N: ENC1-A-MagWheel-V2 [U8775290]

Rubber Wheel (standard on stand-alone ENC1)

Ideal for nonferromagnetic surfaces with temperatures up to 150°C.
P/N: ENC1-A-Pwheel [Q1500046]

Mounting Bracket Kit (included in stand-alone ENC1)

Used to mount the Mini-Wheel encoder directly one a wedge.
P/N: ENC1-BRACK [U8775120]

Universal Holder

(See below)

Universal Holder

Use the Universal Holder to attach the Mini-Wheel encoder or the wire encoder in up to three different orientations to most phased array (PA) wedges. Installation is quickly and easy, and no tools are required. The Universal Holder can also be attached directly to a phased array probe, enabling contact inspection when the use of a wedge is impossible.

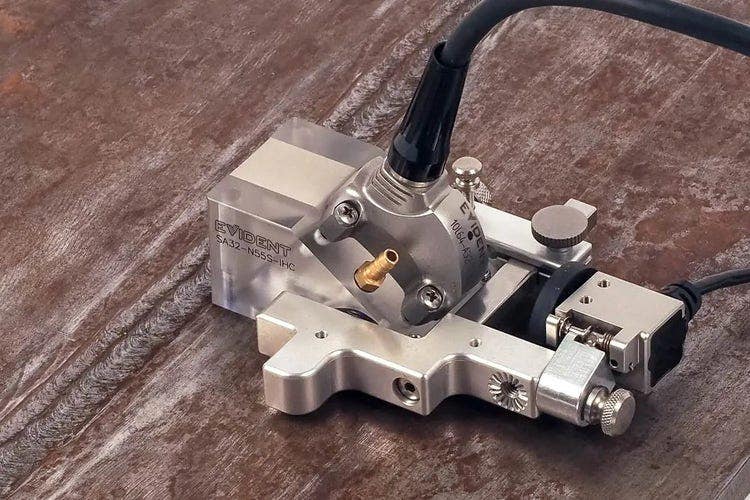

Mini-Wheel encoder mounted on a DLA wedge using the Universal Holder

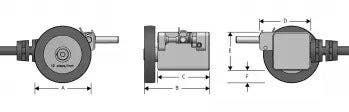

Specifications

Standard Inclusions

Stand-alone Mini-Wheel unit (ENC1):

• 1 encoder with stainless steel casing and rubber wheel
• 1 mounting bracket kit
• 1 hexagonal key screwdriver for bracket attachment

Universal Holder and Mini-Wheel encoder package:

• 1 encoder with anodized casing and magnetic wheel
• 1 Universal Holder
