OmniScan MX2 and SX Softwares

Setup, Inspection, and Analysis Software Solutions

Compatible with OmniScan MX2 and SX flaw detector data, these software solutions assist users with setup configuration, automated data analysis, or post-inspection PC-based analysis and reporting.

Phased Array Ultrasonic Testing (PAUT) Beam Simulation Software

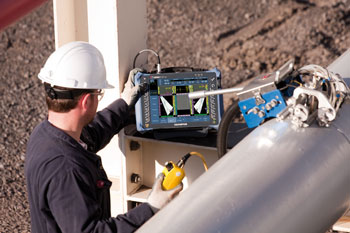

Visualize beam simulations and prepare effective inspection setups in advance using NDT SetupBuilder software. You can make sure that your OmniScan MX2 or SX flaw detector has all the tools you need when you head to the job site.

Automated Analysis of Weld Inspection Data

To accelerate and standardize the analysis of your weld inspection data, algorithms of the Automated Detection Technology™ (ADT) software from VeriPhase® process encoded phased array data for you. ADT processed data can be exported to OmniPC 4 software for further analysis and reporting.

Perform OmniScan MX2 and SX Data Analysis on a PC

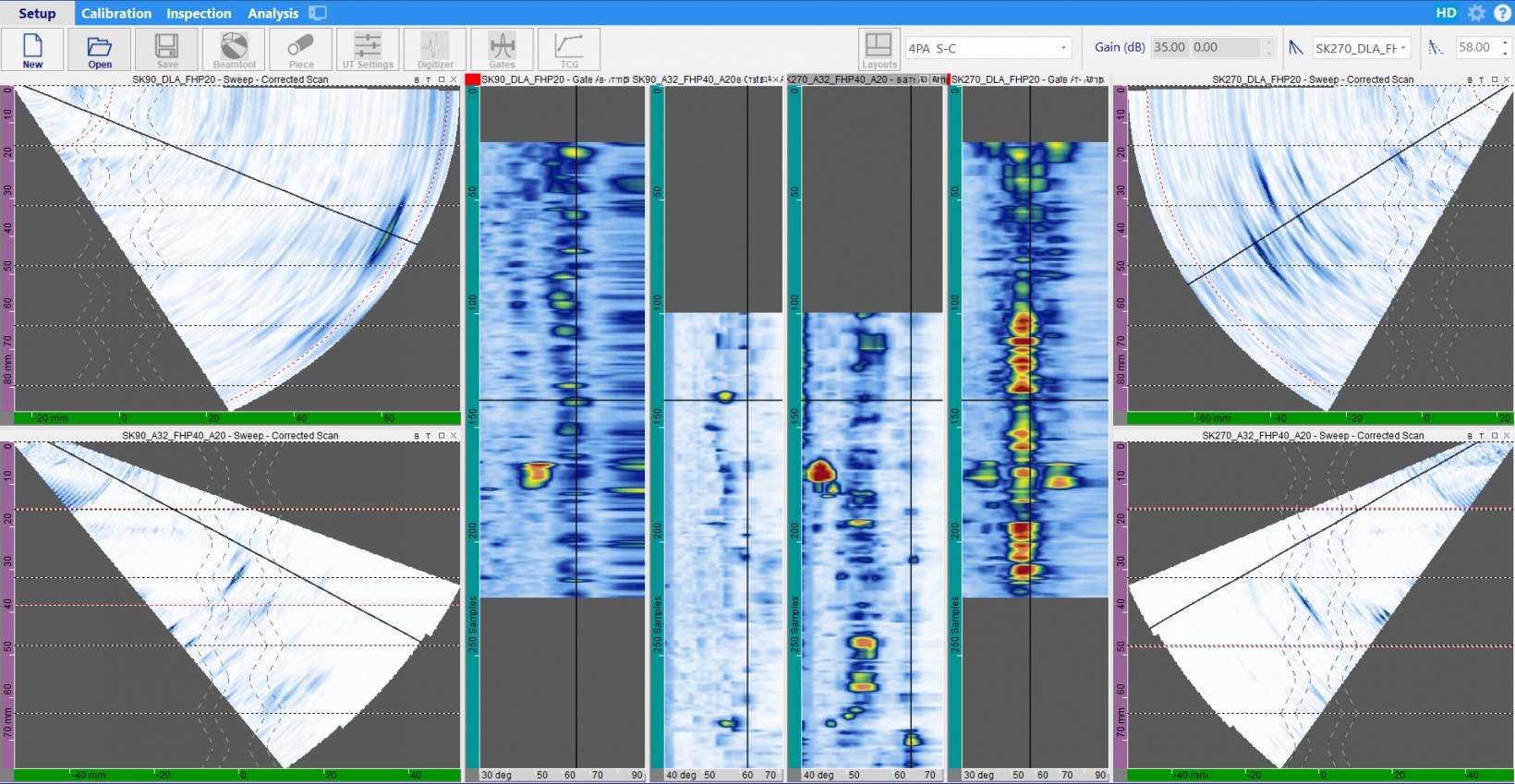

Analyze UT, PA, and TOFD inspection data and generate reports using OmniPC 4 software. Using the PC-based software enables you to deploy the flaw detector back in the field while the analysis is performed. OmniPC 4 software features the same practical analysis tools and intuitive menus of the onboard OmniScan MX2 and SX software.
