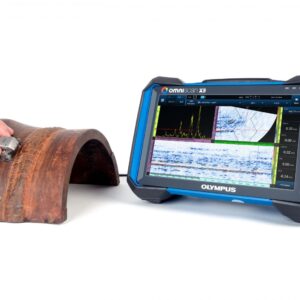

OMNISCAN™ X3 64 Phased Array

Power You Can Carry

Housed in the field-proven rugged and portable OmniScan X3 enclosure, the OmniScan X3 64 flaw detector’s powerful focusing capabilities supported by its larger element-aperture capacity enable you to fully exploit 64-element phased array probes and 128-element aperture TFM. Utilize its enhanced performance to meet the inspection challenges of thick and attenuative materials and expand your potential to develop new procedures for a wider range of applications.

The OmniScan X3 flaw detector is a complete phased array toolbox. Powerful tools, including total focusing method (TFM) imaging and advanced visualization capabilities, backed by its high image quality enable you to complete your inspection with greater confidence.

Confirm Your TFM Beam Coverage in Advance

The Acoustic Influence Map (AIM) tool provides you with an instant visual model of the sensitivity based on your TFM mode, probe, settings, and simulated reflector.

The AIM tool takes the guesswork out of creating your scan plan—visualize the effect of a wave set (TFM mode), see where sensitivity stops, and adjust your scan plan accordingly.

Confirm Your TFM Beam Coverage in Advance

The Acoustic Influence Map (AIM) tool provides you with an instant visual model of the sensitivity based on your TFM mode, probe, settings, and simulated reflector.

The AIM tool takes the guesswork out of creating your scan plan—visualize the effect of a wave set (TFM mode), see where sensitivity stops, and adjust your scan plan accordingly.

Improved, Faster Calibration

The OmniScan X3 calibrator tracks the signals at high speed. Perform multigroup calibrations in minutes.

Familiar Yet Improved OmniScan Experience

Users who own or trained on an OmniScan will transition easily to the OmniScan X3 flaw detector, and new users will find it easy to learn.

OmniScan^® X3 Series Specifications

These specifications apply to all OmniScan X3 and OmniScan X3 64 models. • Data Specifications • Acoustic Specifications • TFM/FMC • Operating Environment

Display
Type	Multigroup, multimode ultrasonic flaw detector
Size (W × H × D)	335 mm x 221 mm x 151 mm (13.2 in. x 8.7 in. x 5.9 in.)
Weight	5.7 kg (12.6 lb) (with 1 battery)
Hard Drive Capacity	OmniScan X3 : Internal 64 GB SSD OmniScan X3 64 : Internal 1TB SSD extendable using an external USB drive
Storage Devices	SDHC^™ and SDXC^™ cards or most standard USB storage devices
Max Onboard File Size	25 GB
GPS	Yes (unless specified otherwise for some regions)
Alarms	3
Wireless Connection	Yes – wireless LAN dongle included in the package (model varies according to region)
PA Connectors	1 connector
UT Connectors	4 (2 channels P/R)
Certifications	ISO 18563-1:2015 ISO-22232-1:2020
Type	TFT LCD with resistive touch screen
Size	269 mm (10.6 in.)
Resolution	1280 × 768 pixels
Number of Colors	16 million
Viewing Angles	Horizontal: −85° to 85° Vertical: −85° to 85°
I/O Ports
USB 2.0	2 ports (one hidden behind the battery)
USB 3.0	1 port
Video Output	Video out (HDMI)
Memory Card	SDHC port
Communication	Ethernet
I/O Lines
Encoder	2-axis encoder line (quadrature quadrature direction), 3rd encoder ready
Digital Input	6 digital inputs, TTL
Digital Output	5 digital outputs, TTL
Acquisition On/Off Switch	Through the configuration of a digital input
Power Output Line	5 V nominal, 1 A (short-circuit protected), and 12 V output at 1 A
External DC Supply
DC-IN Voltage	15 VDC to 18 VDC (min. 50 W)
Connector	Circular, 2.5 mm pin diameter, center-positive
Battery
Type	Lithium-ion battery
Capacity	87 Wh
Number of Batteries	2
Life	5 hours using 2 batteries (hot-swap capable)
PA/UT Configuration
Bit Depth	16 bits
Maximum PRF	20 kHz
Frequency
Effective Digitizing Frequency	Up to 100 MHz
Display
Refresh Rate	A-scan: 60 Hz; S-scan: 20 Hz to 30 Hz
Envelope (echo-dynamic mode)	Yes: Volume-corrected S-scan (30 Hz)
A-Scan Height	Up to 800%
Synchronization
On Internal Clock	1 Hz to 10 kHz
External Pace	Yes
On Encoder	On 2 axes: from 1 to 65,536 steps

Data Specifications

Processing
Maximum Number of A-Scan Data Points	Up to 16,384
Real-Time Averaging	PA: 2, 4, 8, 16 UT: 2, 4, 8, 16, 32, 64
Rectification	RF, full wave, half wave+, half wave-
Filtering	PA channel (OmniScan X3): 8 low-pass, 6 band-pass, and 4 high-pass filters PA channel (OmniScan X3 64): 9 band-pass and 7 high-pass filters UT channel: 8 low-pass, 6 band-pass, and 4 high- pass filters (3 additional filters when configured in TOFD)
Video Filtering	Smoothing (adjusted to the probe frequency range)
Programmable TCG
Number of Points	32: One TCG (time-corrected gain) curve per focal law
Range	PA (standard): 40 dB per step of 0.1 dB UT: 100 dB per step of 0.1 dB
Maximum Slope	PA (standard): 40 dB/10 ns UT: 40 dB/10 ns

Acoustic Specifications

Model	OmniScan X3	OmniScan X3 64	Both
Pulser	PA Channel	PA Channel	UT Channels
Voltage	40 V, 80 V, and 115 V	10 Vpp, 20 Vpp, 40 Vpp, 80 Vpp, 120 Vpp, and 160 Vpp	85 V, 155 V, and 295 V
Pulse Width	Adjustable from 30 ns to 500 ns; resolution of 2.5 ns	Adjustable from 30 ns to 1000 ns (half period of bipolar pulse or duration of negative of pulse); resolution of 5 ns	Adjustable from 30 ns to 1,000 ns; resolution of 2.5 ns
Fall Time	< 10 ns	< 10 ns	< 10 ns
Pulse Shape	Negative square pulse	Bipolar negative-positive square pulse Negative square pulse
Output Impedance	28 Ω in pulse-echo 24 Ω in pitch-catch	35 Ω	< 30 Ω
Receiver	PA Channel		UT Channels
Gain Range	0 dB to 80 dB maximum input signal; 550 mVp-p (full-screen height).	0 dB to 80 dB; maximum input signal 900 mVp-p (full-screen height).	0 dB to 120 dB maximum input signal; 34.5 Vp-p (full-screen height).
Input Impedance	57 Ω ± 10% at 9 MHz in pulse-echo 100 Ω ± 10% at 9 MHz in pitch-catch	120 Ω ±10 % at 13 MHz	50 Ω in pulse-echo mode 50 Ω in pulse-receive mode
System Bandwith	0.5 MHz to 18 MHz	0.2 MHz to 26.5 MHz	0.25 MHz to 28 MHz
Beam Formation	PA Channel		UT Channels
Scan Type	Single, linear, sectorial, compound, and TFM		-
Maximum Aperture	OMNIX3-PATFM1664PR = 16 elements OMNIX3-PATFM16128PR = 16 elements OMNIX3-PATFM32128PR = 32 elements	OMNIX3-PATFM64128PR = 64 elements	-
Number of Receiving Elements	OMNIX3-PATFM1664PR = 64 receiving elements OMNIX3-PATFM16128PR = 128 receiving elements OMNIX3-PATFM32128PR = 128 receiving elements	OMNIX3-PATFM64128PR =128 elements	-
Number of Focal Laws	Up to 1024		-
Delay Range Transmission	0 µs to 10 µs in 2.5 ns increments	0 µs to 10 µs in 5 ns increments	-
Delay Range Reception	0 µs to 6.4 µs in 2.5 ns increments		-

TFM/FMC

Supported Modes	Pulse-echo: L-L, T-T, and TT-TT Self-tandem: LL-L, TT-T, TT-L, TL-T, LT-T, TTT-TT, and TL-L
Number of Groups	Up to 4 simultaneous TFM groups
Maximum Aperture	64-element aperture for 64:128PR 64-element extended aperture (32:128PR only) 32-element extended aperture for 16:64PR and 16:128PR 128-element extended aperture for 64:128PR
Image Resolution	Up to 1024 × 1024 (1 M points) for each TFM group
Live TFM Envelope	Yes

Operating Environment

Ingress Protection Rating	IP65 certified (completely protected against dust and water jets from all directions (6.3 mm nozzle))
Shockproof Rating	Drop tested according to MIL-STD-810G
Intended Use	Indoor and outdoor use
Altitude	Up to 2,000 m (6,561 ft)
Operating Temperature	−10 °C to 45 °C (14 °F to 113 °F)
Storage Temperature	−20 °C to 60 °C (−4 °F to 140 °F) (with battery inside) −20 °C to 70 °C (−4 °F to 158 °F) (with no battery inside)
