Focus PX / PC / SDK

Olympus offers a complete advanced phased array integration solution that meets the requirements of your most demanding customers. The solution includes the FOCUS PX, a powerful and scalable acquisition unit; FocusPC, a powerful data acquisition and analysis software program; and three software development kits (SDK), FocusControl, FocusData, and OpenView SDK, to customize your software interface based on your application and control FocusPC for a fully automated inspection solution

Excellent Signal Quality

The FOCUS PX provides excellent phased array signal quality using the latest Olympus technology, resulting in significantly improved signal-to-noise ratio.

Scalable and Powerful

The FOCUS PX is equipped with the latest phased array technology to deliver significant performance enhancements and faster inspection speed in highly demanding applications. Up to four FOCUS PX units can be used in parallel, offering a significant increase in inspection speed and advanced multiprobe configurations.

Fast Programming

The optimized FOCUS PX communication process significantly reduces programming time, resulting in minimized cycle time and improved operator experience.

Rugged

The FOCUS PX is a rugged unit that is designed for integration in harsh production environments. Designed for IP65 rating, the casing has multiple fins for optimized heat dissipation.

Easy Integration

The FOCUS PX bumpers can be easily removed to access four screw holes for mounting the unit directly onto a scanner or inspection system.

Simple Cabling

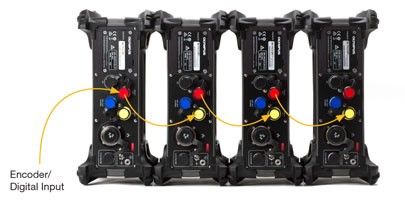

Multiple FOCUS PX units can be synchronized with each other through a simple cable configuration. This allows all I/O signals to be received by one unit, reducing cabling and greatly simplifying the overall integration.

Easy Mounting

Easy and quick installation allows the FOCUS PX to be positioned much closer to the probes, reducing cabling and optimizing signal quality.

Four screw holes are available for mounting the unit directly onto any inspection scanner.

Specifications

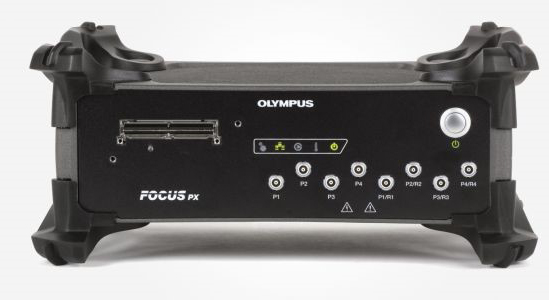

Front

Back

Phased array channels	16:64PR: 64 16:128PR/32:128PR: 128
Number of pulsers	16:64PR/16:128PR: 16 consecutive elements 32:128PR: 32 consecutive elements
Conventional UT channels	4 dedicated UT channels (8 connectors for pulse-echo and pitch-catch configurations support)
Data acquisition rate	Up to 30 MB/s (1 FOCUS PX) Up to 60 MB/s (2 to 4 FOCUS PX)
Acquisition speed	Up to 20000 12-bit A-scans/second of 750 points each
Amplitude resolution	8-bit / 12-bit
Maximum number of A-scan samples	16380
Real-time data compression	1 to 2000 ratio
Rectification	FW, HW+, HW–, and RF
Filtering	Digital band-pass, high-pass and low-pass filters
Voltage	PA : 4 V, 9 V, 20 V, 40 V, 80 V, and 115 V UT : 50 V, 100 V, and 190 V
Gain	PA : 80 dB (46 dB analog + 34 dB digital) UT : 120 dB (digital)
Pulse width	PA : 30 ns to 500 ns (steps of 2.5 ns) UT : 30 ns to 1000 ns (steps of 2.5 ns)
Bandwidth (-3 dB)	PA : 0.6 MHz to 17.8 MHz UT : 0.25 MHz to 28 MHz
Number of beams	Up to 1024
Pulse repetition frequency (PRF)	1 Hz to 20 kHz
Real-time averaging	PA : 1, 2, 4, 8, 16 UT : 1, 2, 4, 8, 16, 32, 64
Number of gates	4 for detection; 1 for synchronization
Encoder	2 axes (quadrature, clock direction)
Network interface	1000BASE-T
Size (W x H x D) With bumpers	30.7 cm × 13.5 cm × 23.6 cm (12 in. × 5.3 in. × 9.3 in.)
Size (W x H x D) Without bumpers	27.6 cm × 9.2 cm × 23.1 cm (10.9 in. × 3.6 in. × 9.1 in.)
Weight With bumpers	4.8 kg (10.5 lb)
Weight Without bumpers	4.2 kg (9.2 lb)
IP rating	IP65
